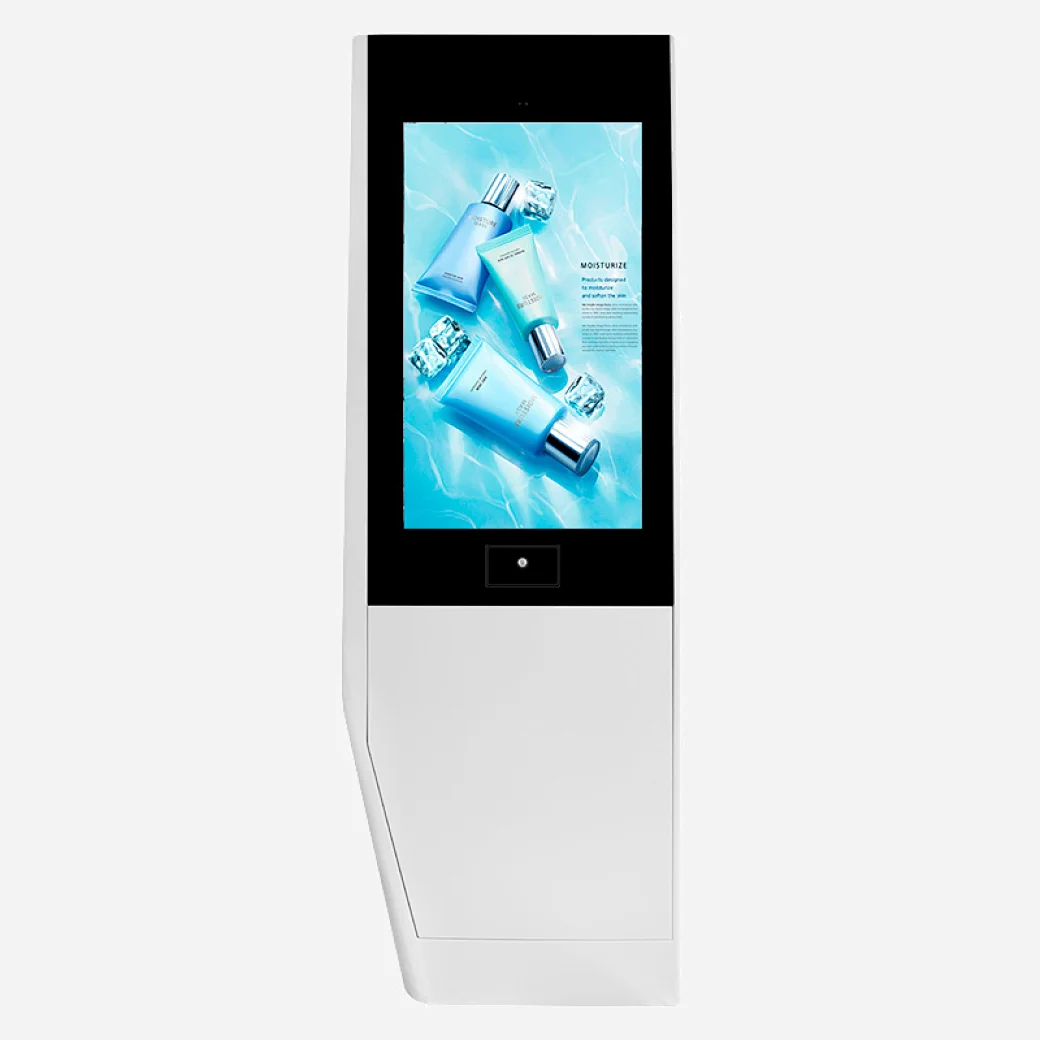

Outdoor Smart City Kiosk

A55-OFS02 Series
Delivery:
EXW, FOB, CIF.
Minimum order quantity:
1 piece
Supply Ability:
5000piece / Month
Country of Origin:
Shenzhen, Guangdong, China
Stock Time:
7Day
Quantity
Contact Now
add to cart







Model Description

The City Information Kiosk, with its exceptionally large touch screen monitor, is a big touch screen kiosk that demands your customers’ attention. With 32″ and 98″ touch screen options, the City Outdoor Information Kiosk increases your brand awareness by providing an inviting way to attract new customers. The large touch screen monitor displays your products, videos, or promotions and encourages customers to interact with the infrared touch screen.

Simply pick your enclosure and add one of our OEM or Vestel High Brightness 2500 Nits screens & your choice of a digital signage player for a full solution.

We also offer a range of professional commercial LCD, FHD/ UHD displays, which provide an impactful image quality, with many features such as SoC & Built-in on/off timers, which can be easily set via the Remote Control, with RC Batteries included.

For piece of mind a 3-year commercial warranty is included and is designed to run problem free 24/7. Content can be updated easily via Plug & Play (USB) feature via the built-in SoC player which is built-in to the display screen or via one our Add-ons; W10 or Android cloud-based content management systems; spec details & POA.











Product Features :

  • Outdoor protection level reaches IP55 / IP65, waterproof, dustproof, moisture-proof, corrosion-proof, and explosion-proof
  • Security lock, support open door maintenance
  • Automatically adjusted according to the environment Temperature Control / brightness control to reduce light pollution and save electricity
  • The temperature control system can adjust the internal temperature and humidity of the equipment to ensure that it operates in an environment of -40 to+55 degrees Celsius
  • Additional monitoring devices are available, remote publishing and management of playback content can be achieved
  • Double sided scree design option
  • One side screen and one side light box design option
  • Equipped with HDMI, VGA, AV, and other video interfaces for easy playback
  • Support various multimedia file formats: MPEG-1/2/4, MP3, AVI, DAT, PPT, etc
  • Customized logo options.
  • Panel Size 43inch~98inch




















 Product Specifications

Screen
  Panel Size  43inch  49inch
  55inch
  65inch  75inch
  Resolution
  1920×1080 (4K optional)
  LCD Type
  TFT-LCD
  Aspect  16 : 9
  IP Geade  IP65
  Panel Life  ≥50000 hours
  Brightness  1500~5000nits
  Contrast Ratio (typ)  1400:1
  Viewing Angle  178(H/V)
  Response Time  ≤8ms
  Power Consumption
  500W
  Power Supply  AC 110V-240V, 50HZ/60HZ
  Working Humidity
  5% to 95%
  Storage Humidity
  10%~90%(noncondense)
  Temperature Control System
  Intelligent fans cooling / Air Conditioner optional
Touch Screen (optional)
  Touch Acreen  PCVP Touch
  O.S
  Windows / Linux / Android
  Temperature  -40°C~+65°C
  Transparency  > 90%, Up to 100%
  Scanning Speed
  >50Scans/S
  Touch Precision
  0.625mm
  Minimum Touch
  10points



Available Operating Systems
  Standalone Version
  (no system)
  Interface (I/O)  USB*1, SD *1, HDMI *1  (Support USB plug and play)
  Android Specs  CPU  RK3288 / RK3399 / RK3568 (Quad Core)
  RAM  2GB / 4GB
  Memory  8GB / 16GB / 32GB
  Android Version  7.1 / 11.0 above
  Network  Wifi / RJ45
   Windows Specs  CPU  i3 / i5 / i7 (Dual core)
  RAM  4GB / 8GB
  SSD  65GB / 128GB / 256GB / 512GB
  Network  Wifi / RJ45
  Frequency  2.9ghz
  Turbo  3.6Ghz DDR3






Successful Project




Public Space Schools Commercial Space Goverment
