Retail Payment Kiosk
A32-FSO01 series
Delivery:
EXW, FOB, CIF
Minimum order quantity:
1 piece
Supply Ability:
5000piece / Month
Country of Origin:
Shenzhen, Guandong, China
Stock Time:
7-10Day
Quantity

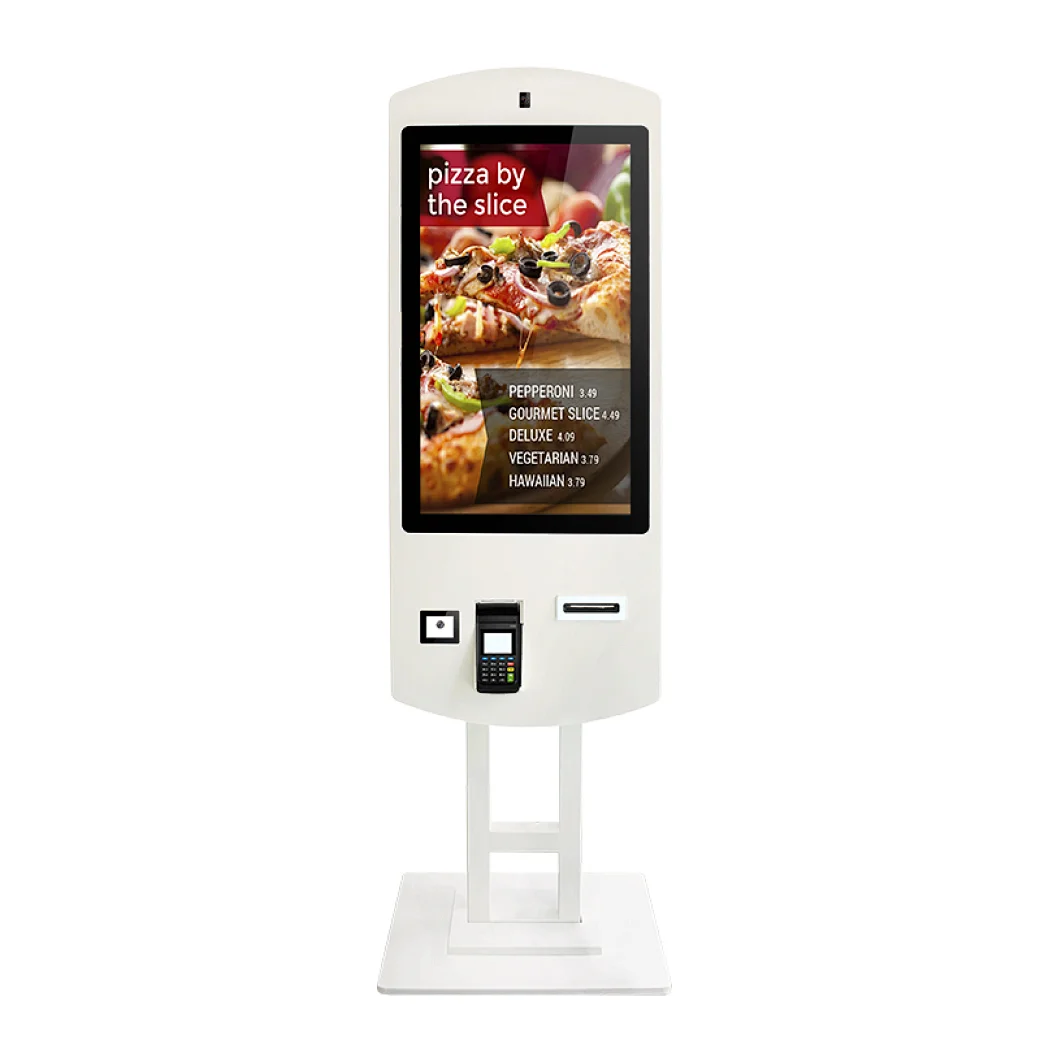

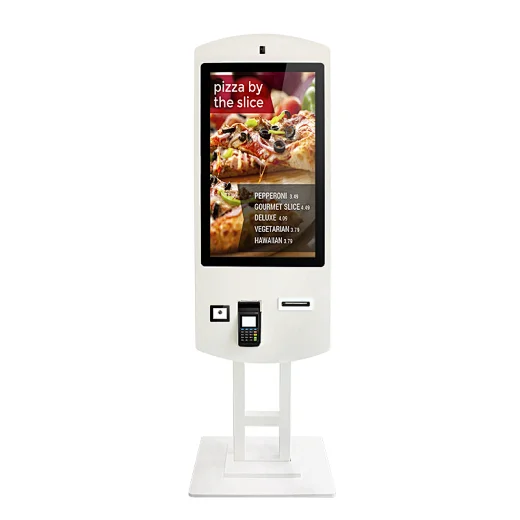

Retail Payment Kiosk
Retailers in all markets are delivering self service in a new, modern and engaging form with the Retail Payment Kiosk. The commanding height and large touch screen monitor invite users to interact. This sleek design is created with a minimal footprint to allow for use in tight spaces and still make a big splash. With standard illuminated acrylic top, this is an interactive kiosk that will not be missed!
 |  |
Product Features
Astouch the LCD screen adopts the new generation LED backlight technology, which improves the brightness of the LCD screen by modifying the original LCD backlight, allowing the to clearly display and play videos.
- FHD LCD,PCAP touch
- Wall mount, floor standing optional
- Support thermal printer, QR code scanner&POS Pinpad,camera as requires
- Save labor cost, Improve ordering efficiency, boost sales
- Used for chain restaurants, fast food restaurants, cafes, milk tea shops and Other catering places
- Independent advertising screen can release the latest dishes, recruitment Information and restaurant news etc
- Optional with HDMI, VGA, AV, and other video interfaces for easy playback
- Customized logo options.
Product Description
Can customize programs, play them in real-time, display rich content, and facilitate replacement. At the same time, the broadcast content is not limited to advertisements, but can also include programs such as special topics, columns, variety shows, animations, etc. All you need to do is edit the program, and there is no need for any other investment, saving costs.
Can be released for a long time and run 24 hours a day without interruption. It is a persistent, 24-hour communication medium.
Combined with 4K Ultra HD (3840x2160 pixel) and H.265 technologies deliver a crisp, clear, smooth experience. Simply tap to share what's on your laptop or phone. great viewing experience from any angle and distance.
For piece of mind a commercial warranty is included and is designed to run problem free 24/7. Content can be updated easily via Plug & Play (USB) feature via the built-in SoC player which is built-in to the display screen or via one our Add-ons; W10 or Android cloud-based content management systems; spec details & POA.
Product Specifications
Screen
| Panel Size | 22inch | 32inch |
| Resolution | 1920×1080 (4K optional) | |
LCD Type | LCD | |
| Aspect | 16 : 9 | |
| Camera | 1080P | |
| Panel Life | ≥50000 hours | |
| Brightness | 300-400nits | |
| Contrast Ratio (typ) | 1400:1 | |
| Viewing Angle | 178(H/V) | |
| Response Time | 5 ms | |
Dot Pitch | 0.294 mm | |
| Power Supply | AC 110V-240V | |
lens Transmission | 90%～92% | |
Orientation Precision | < 2mm | |
Thermal Printer | 50mm or 80mm | |
QR Code Reader | 1D/2D can be read | |
| POS Lnstalltion Slot | Extemal USB port: built-in ethermet router for POS pinpad, provide mounting plate and inside socket for power | |
Touch Screen
| Touch Acreen | PCVP Touch | ||||
| Resolution | 4098×4098 | ||||
| Transparency | > 90%, Up to 100% | ||||
Touch Precision | 0.625mm | ||||
Minimum Touch | 10points | ||||
Available Operating Systems
| Android Specs | CPU | RK3288 / RK3399 / RK3568 (Quad Core) |
| RAM | 2GB / 4GB | |
| Memory | 8GB / 16GB / 32GB | |
| Android Version | 7.1 / 11.0 above | |
| Network | Wifi / RJ45 | |
| 1.8GHz, 1.8GHz ,2.0GHz | ||
| Windows Specs | CPU | i3 / i5 / i7 (Dual core) |
| RAM | 4GB / 8GB | |
| SSD | 65GB / 128GB / 256GB / 512GB | |
| Network | Wifi / RJ45 | |
Successful Project
 |  |  |  |
| Super Shop | Shopping Mall | Hotel | Resturent |
